How can I import oil test information for my transformers?

Note: Before uploading oil test results for a transformer, the transformer needs to be created/added in the dashboard.

The oil test results can be added/uploaded manually or via CSV file. This can be done either in the oil tab or the transformer page.

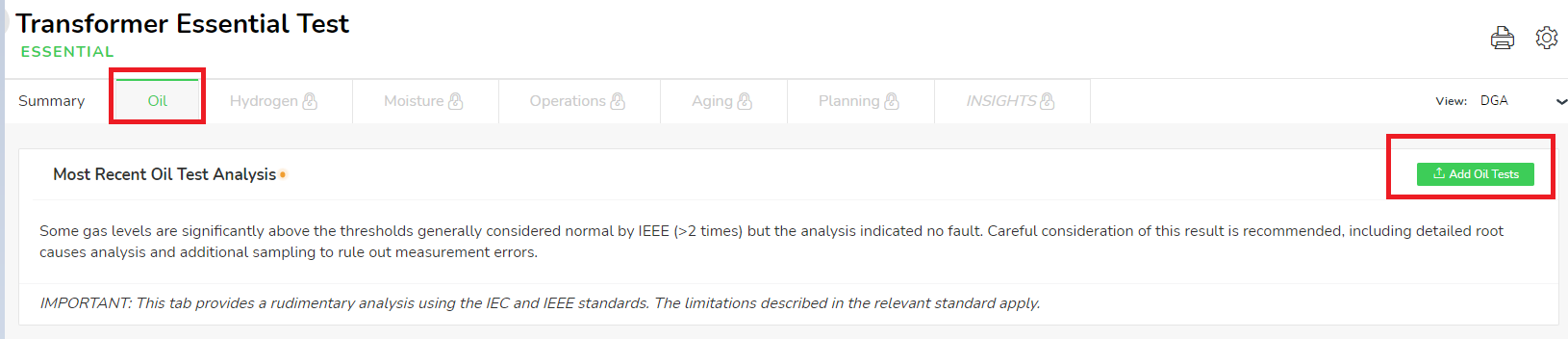

Oil Tab:

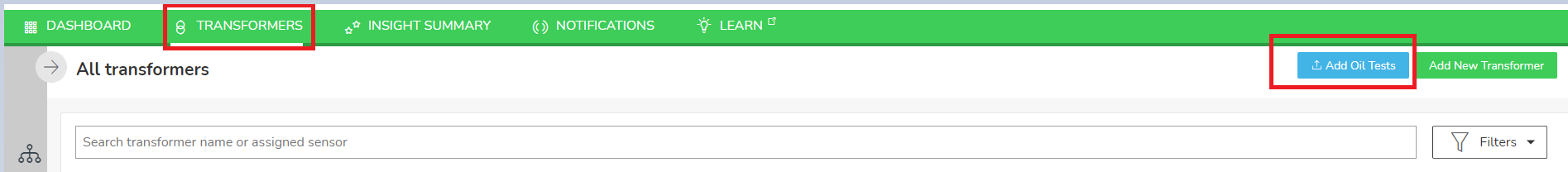

Transformer Page:

Upload via CSV File

Adding large numbers of oil tests manually for multiple transformer can be a long process. Uploading a CSV file containing your oil test data for all transformers may be a better option.

In order for your data to be correctly imported into the system your CSV file must contain the following headers:

• transformer (name of the asset)
• test_date (in the format yyyy-mm-dd)
• oil_temp (decimal value in degrees celsius)

The following headers are used for the Dissolved Gas Analysis. All are decimal values in parts per million, ppm:

• h2
• o2
• n2
• co
• co2
• ch4
• c2h6
• c2h4
• c2h2

• two_fal_furans (decimal value in ppm)
• moisture (decimal value in ppm)
• di_electric (decimal value in kV)
• acidity (decimal value in mg KOH/g)
• interfacial tension (decimal value in mN/M)

Any other headers will be ignored. The filename of the uploaded csv can be your choice. An example csv file is attached to this article.
Note if the values in the offline test results are written as ''<1'', it generally means that the gases concentration is undetectable. This could be recorded as "0" in the .CSV file.

To bulk upload via .CSV file, upload the CSV file by pressing the choose file button as shown below.

After choosing the file, you should see the file name next to the button. Press the upload button. The screen will show the tabular view of uploaded oil test result. If there are any errors, the box will be highlighted red. If there are any warnings the box will be highlighted orange. Hover over the highlighted box will provide details about the warning/errors. In the picture below two assets have the same name, click the red highlighted box to select the right asset.

Once all the errors and warnings have been cleared and reviewed you can press the confirm changes button at the bottom to upload oil test results.
If you wish to cancel, press the cancel button at the bottom or press the blue re-upload oil test button to upload a different .csv file. If the file has uploaded successfully, results will be seen in the Oil Test Results tab on the transformer detail page.

Manual Upload

The oil test results can also be uploaded manually by pressing the add new oil test button at the top right. This option is useful if you want to add only a couple of oil test results.

Pressing add new oil test button will create a line. Add all the information from the oil test report. Pressing the button again will create more lines.

Once all the errors and warnings have been cleared and reviewed you can press the confirm changes button at the bottom to upload oil test results. If the oil test result is added successfully, results will be seen in the Oil Test Results tab on the transformer detail page.
